QBY4第4代氣動隔膜泵 QBY4-10/15/20/25/25A/32/40/40A/50/50A/65/65A/80/80A/100/100A/125
來源:上海邦泉泵業 發布時間:2024-10-10 點擊:

QBY4氣動隔膜泵 第4代氣動隔膜泵

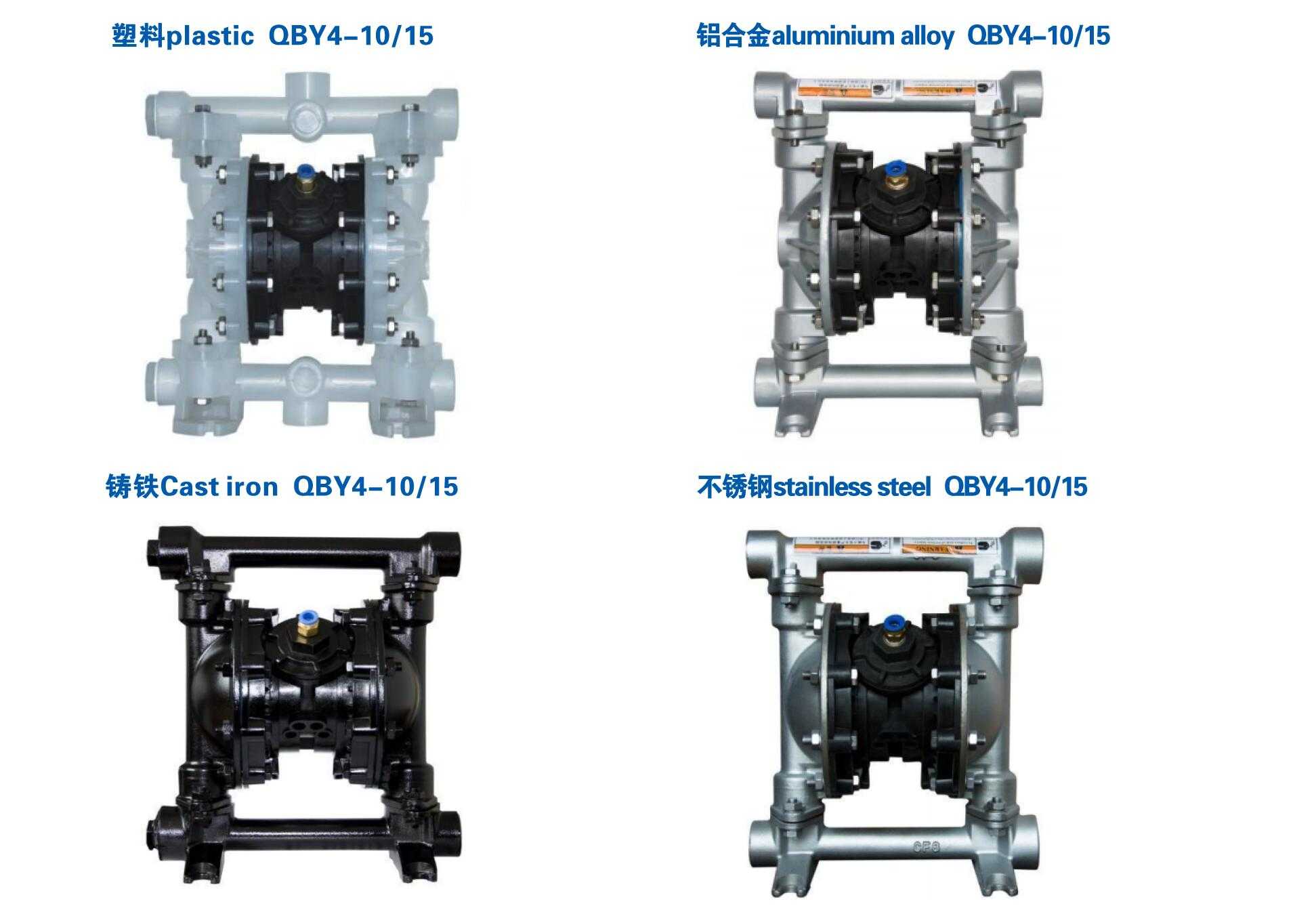

QBY4-10/15塑料/鋁合金/鑄鐵/不銹鋼氣動隔膜泵

QBY4-10 QBY4-15 塑料 不銹鋼 鋁合金 鑄鐵氣動隔膜泵

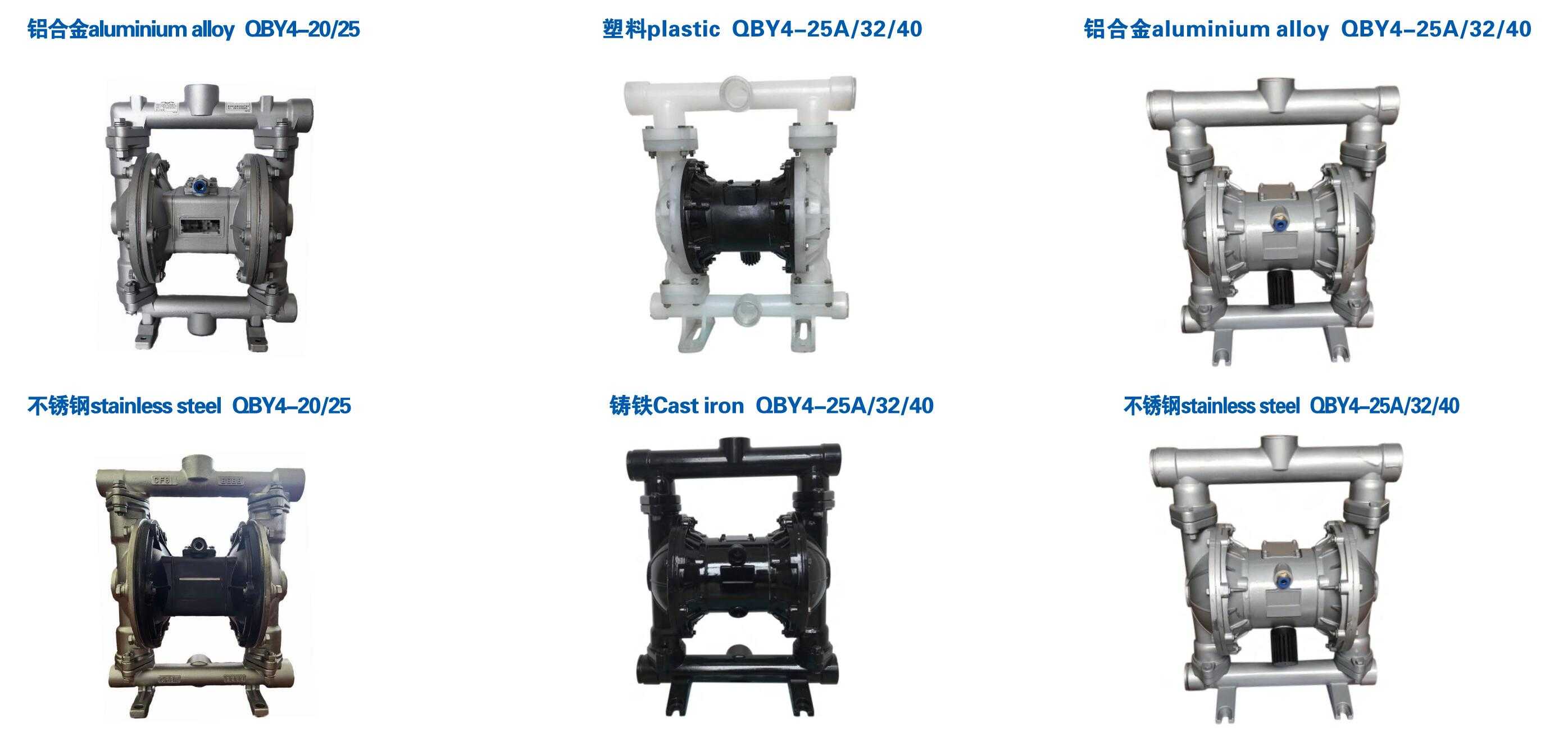

QBY4-20/25/25A/32/40塑料/鋁合金/鑄鐵/不銹鋼氣動隔膜泵

QBY4-20 25 25A 32 40 塑料 不銹鋼 鋁合金 鑄鐵氣動隔膜泵

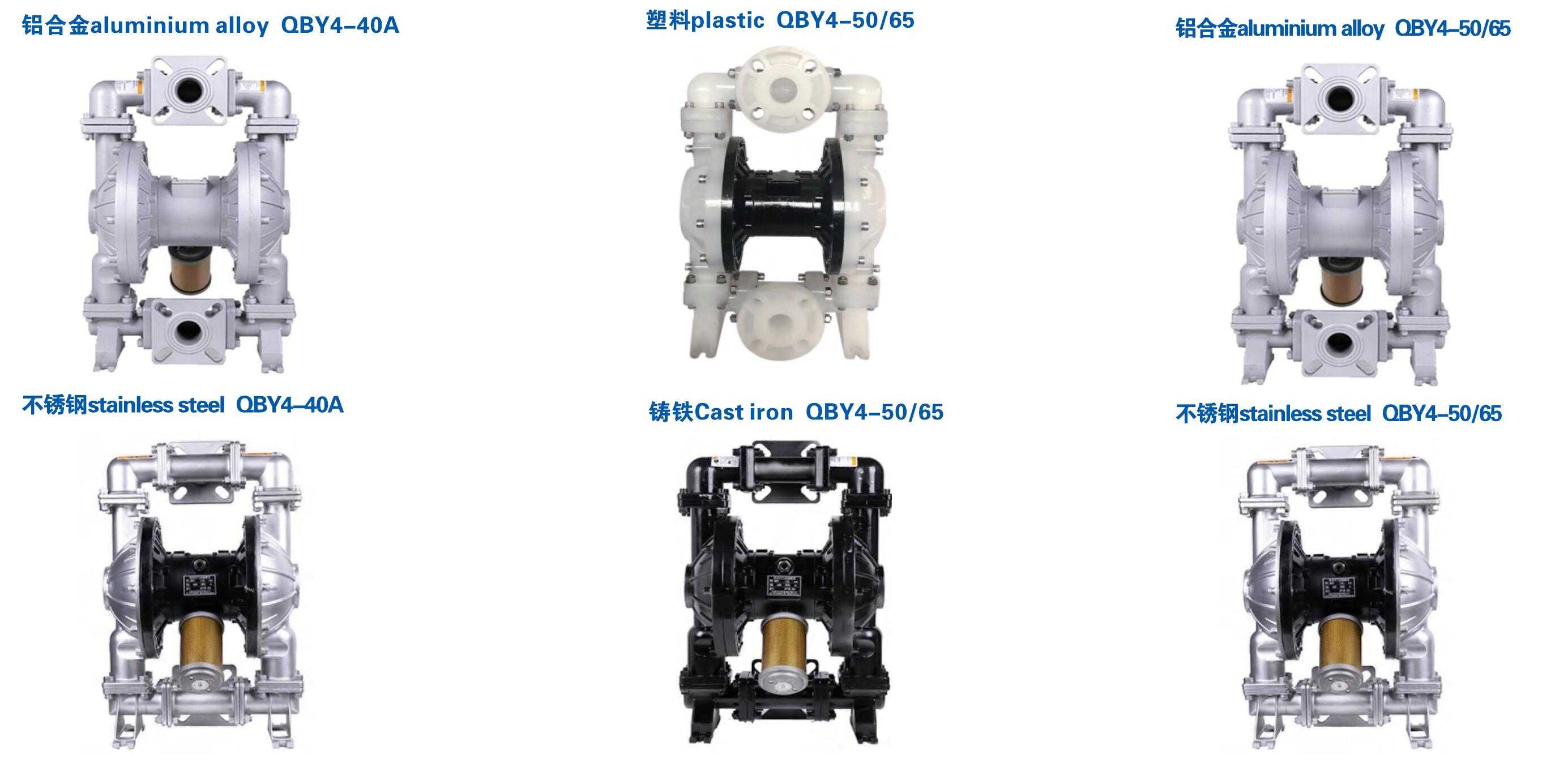

QBY4-40A/50/65塑料/鋁合金/鑄鐵/不銹鋼氣動隔膜泵

QBY4-40A 50 65 塑料 不銹鋼 鋁合金 鑄鐵氣動隔膜泵

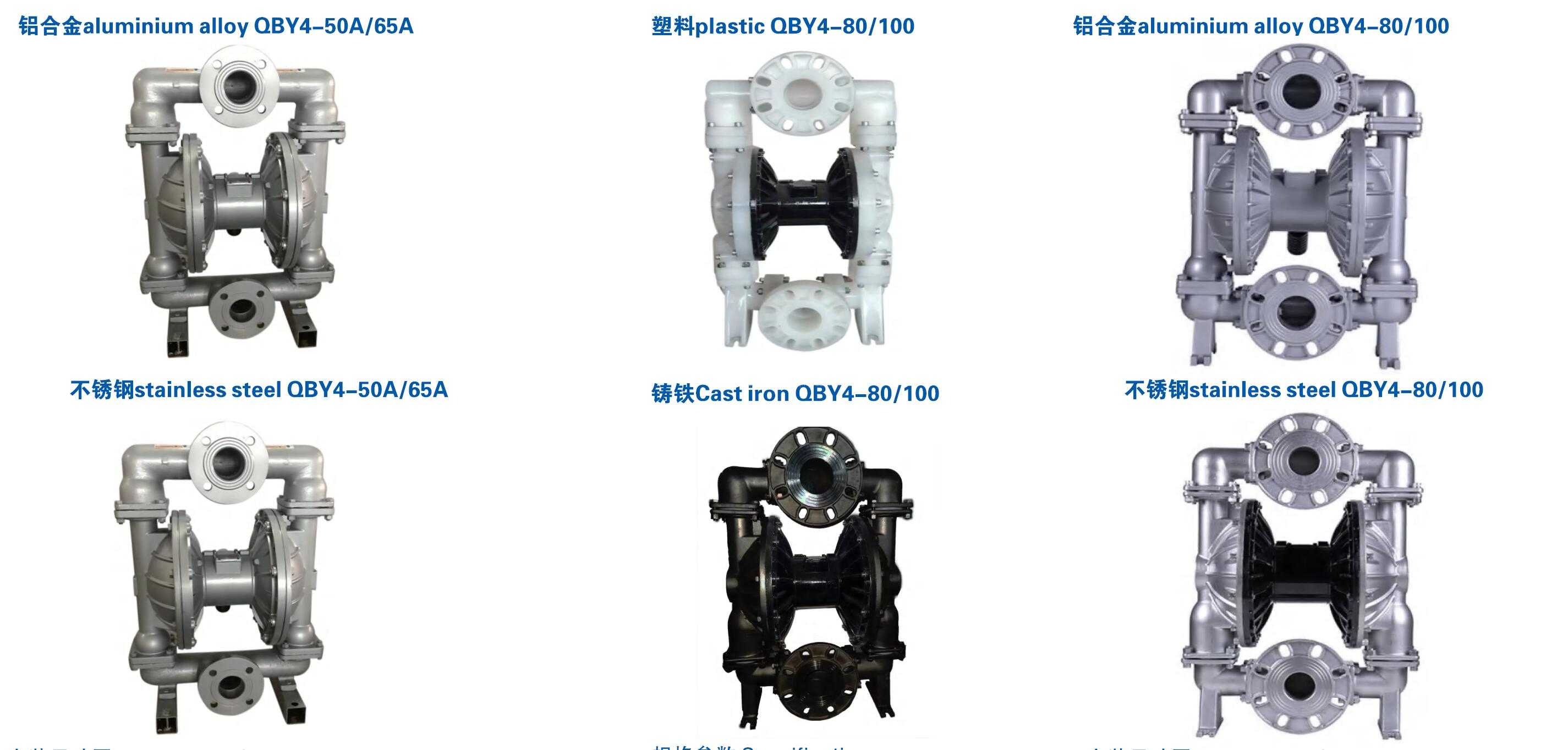

QBY4-50A/65A/80/100塑料/鋁合金/鑄鐵/不銹鋼氣動隔膜泵

QBY4-50A 65A 80 100 塑料 不銹鋼 鋁合金 鑄鐵氣動隔膜泵

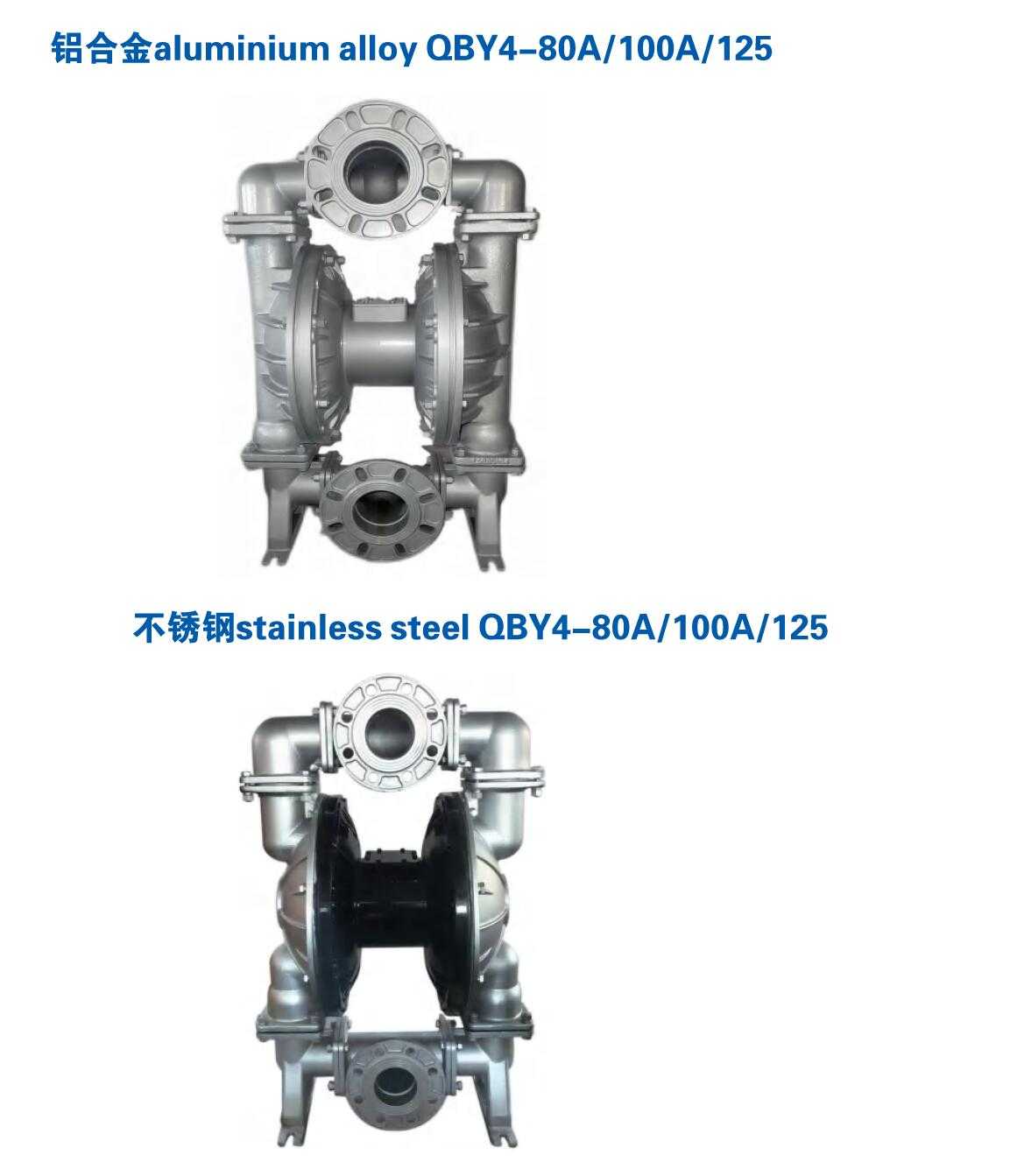

QBY4-80A/100A/125鋁合金/不銹鋼氣動隔膜泵

QBY4-80A 100A 125 不銹鋼 鋁合金氣動隔膜泵
產品概述Performance summary
OBY4氣動隔膜泵是上海邦泉泵業制造有限公司開發的第四代氣動隔膜泵,具有使用壽命長,不會停頓等優點,它既能抽送流動的液體,又能輸送一些不易流動的介質,具有自吸泵、潛水泵、屏蔽泵、泥漿泵和雜質泵等輸送機械的許多優點。
1、不需灌引水:吸程高達5m:揚程達70m.出口壓力>6bar
2、流動寬敞,通過性能好.允許通過最大顆粒直徑達10mm。抽送泥漿、雜質時,對泵損甚微。
3、揚程、流量可通過氣閥開度實現無級調節(氣壓調節在1-7 bar之間)。
4、該泵無旋轉部件,沒有軸封。隔膜將抽送的介質與泵的運動部件完全隔開,所輸送的介質不會向外泄漏。所以抽送有毒、易發揮或腐蝕性介質時,不會造成環境污染和危害人身安全
5、不必用電.在易燃、易爆場所使用安全可靠。
6、可以浸沒在介質中工作。7、使用方便、工作可靠、開停只需簡單地打開和關閉氣體閥門。即使由于意外情況而長時間無介質運行或突然停機泵也不會因此而損壞,一旦超負荷,泵會自地動停機,具有自我保護性能,當負荷恢復正常后,又能自動啟動運行;8、結構簡單、易損件少,該泵結構簡單,安裝、維修方便,泵輸送的介質不會接觸到配氣閥,聯桿等運動部件,不象其他類型的泵因轉子、活塞、齒輪、葉片等部件的磨損而使性能逐步下降。
9、可輸送較粘的液體(粘度在1萬厘泊以下)。
10、本泵無須用油潤滑,即使空轉.對泵也無任何影響,這是該泵最大特點
OBY4 is coosai's new developed coosai model diaphragm pump series ofAODD pump which is also the fourth generation, it has thevirtue of long life span and nonstop operation, not only it can convey some uneasy flowed medium, with the merits the merits of self-priping
pump, diving pump, shield pump, slurry pump and impurity pump etc.1. It's unnecessary to pour the drawing water, the suction lift reaches 3m height, the delivery lift reaches 70m length and theexport pressure 6bar.
2. Wide flow and good performance. The diameter allowed to pass the max grain reaches 10mm. The damage is very less to thepump while exhausting the slurry and impurity.
3. The delivery lift and flow can pass the pneumatic valve open to realize the step less adjustment (the pneumatic pressure adjustment is between 1-7bar).
4. This pump has no rotary parts and no bearing seals. The diaphragm will completely separate the exhausted medium and pumprumning parts, working medium. The conveyed medium can't be leaked outside. Thus it will not cause the environmental pollution andhuman body safety dangerous while exhausting the toxin and flammable or corrosive medium.
5. No electricity. It's safe and reliable while using in the flammable and explore places.
6.It can be soaked in medium7. It's convenient to use and reliable to work. Only open or close the gas valve body while starting or stopping. Even if no mediumoperation or pausing suddenly for long time because of accident maters, the pump will not be damaged caused by this. Once over.loading, the pump will automatically stop and possesses the self protection fiunction, When the load recovers normally, it also can start
automatically.8. Simple structure and less wearing parts. This pump is simple in structure, installation and maintenance. The medium conveyedby the pump will not touch the matched pneumatic valve and coupling lever etc . Not like other kinds pumps, the performance will dropdown gradually because of the damages of rotor, gear and vane etc .
9. It can transmit the adhesive liquid (the viscosity is below 10000 centipoises).
10. This pump needn't the oil lubricant. Even if idling, it has no any influence to the pump. This is a characteristic of this pump.

應用領域 Scope of application
石化 petrochemical  造紙 papermaking  食品 Food
印染 Print  冶金 Metallurgy  電力 Electricity
系統沖洗 System flushing
制藥 Pharmacy  陶瓷 Ceramics  環保Enviroment pretection

訂貨須知:本公司系列氣動隔膜泵進出口有側出的,也有中間出的。訂貨時要予以說明,同時還要告之使用環境溫度介質、流量、揚程、壓力、泵體材料、隔膜材料。
Note :
In order to select suitable material and design of diaphragm pump, process conditions like applied environment,temperature, medium, flow rate, pump head, pressure, pump body material, diaphragm material are required.Please be kindly noted that our diaphragm pump has two constructions in inlet and outlet, one is in the side, the other isin the center of the body. Please specify it when placing orders.
